Description

NANOHEAT

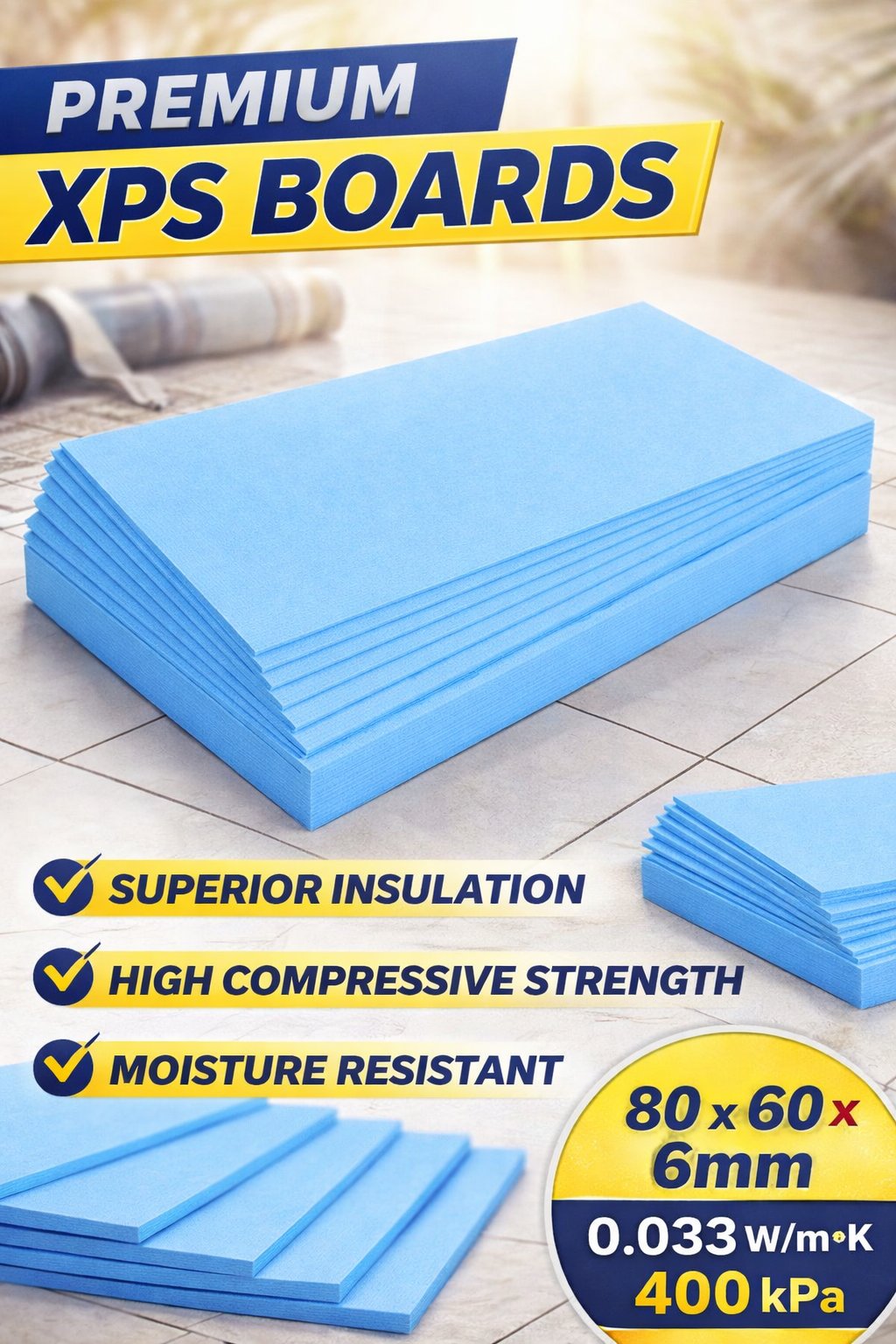

6mm Thermal XPS Insulation for underfloor heating, under laminate, carpet, wood

Efficient Thermal & Acoustic Barrier

Specially developed for floating vinyl and other floating floors. Compensates for local subfloor irregularities up to 0.88 mm, eliminating the need for subfloor repairs. Allows for easy removal of the floor without damaging the subfloor. Optimized for high-efficiency underfloor heating. Increases acoustic comfort through high sound insulation. High resistance to wear and tear. Made from XPS (extruded polystyrene). 100% recyclable, CFC-free, ozone-protecting. Environmentally friendly.

SPECIFICATION:

• Dimensions: 1 board – 60 x 80 cm
• Thickness: 6mm
• Coverage: 1 board = 0.48 m²
• Unit of Measure: 10 boards

PRODUCT BENEFITS:

• Specially developed for floating vinyl and other floating floors
• Compensates local subfloor irregularities up to 0.88 mm, eliminating the need for repairs
• Optimized for high-efficiency underfloor heating
• Increases acoustic comfort through high sound insulation

SURFACE COVERAGE & PACKAGING:

Packaging unit: 1-pack = 10 XPS boards, 1 board = 0.48 m² ,

e.g. When you buy one pack you are buying 4.8 m²

1 package = 10 XPS boards x 0.48m² = 4.8m²

2 packages = 20 XPS boards x 0.48m² = 9.6m²

3 packages = 30 XPS boards x 0.48m² = 14.4m²

4 packages = 40 XPS boards x 0.48m² = 19.2m²

5 packages = 50 XPS boards x 0.48m² = 24 m²

TECHNICAL DATA:

• Thermal conductivity: λ = 0.035 W/(m·K)
• XPS foam density: DIN53420 – 33 +/-0.02 KG/m³
• Compressive strength: 400kPa
• Versatile use: Suitable for vinyl panels without integrated underlay, laminate and multi-layer parquet flooring.
• Optimal insulation: Insulation between floor panels and subfloor, high resistance to loads.
• Compatible with underfloor heating: Highly efficient heat conduction, ideal for modern heating systems.
• Environmentally friendly & sustainable: Made from XPS, 100% recyclable, CFC-free & ozone-friendly.
• The insulation board is intended to provide insulation between floor panels and the subfloor
• It has a wide range of applications in construction

PRODUCT FEATURES:

• Specially developed for floating vinyl floors
• Levels localized substrate unevenness up to 0.88 mm, removing the need for substrate repairs
• Enables easy floor dismantling without damaging the subfloor
• Optimized for high-efficiency underfloor heating
• Enhances acoustic comfort by providing high sound insulation within the room
• High resistance to load
• Made from XPS (extruded polystyrene)
• 100% recyclable, free from CFCs, protects the ozone layer
• Environmentally friendly

Tested in accordance with the recommendations of the European Producers of Laminate Flooring Association and supplied with a Declaration of Conformity according to EN 16354:2018.

Important Shipping Notice

• Due to courier restrictions some areas out of UK mainland (Highlands/Islands/Northern Ireland etc) require extra surcharge.
• Including below post code: PH/BT/IV/TR/IM/PA/KW/PO/AB/FK/HS/KA/ZE/GY/JE/BF.
• We don’t ship to GY/JE postcode.

Please contact us for extra postage charges.

XPS SUPERTERM insulation boards are designed for use under floating floors:

• Vinyl panels without integrated underlay
• Laminate panels
• Engineered wood boards
• The insulation board is intended to provide insulation between floor panels and the subfloor
• It has a wide range of applications in construction
